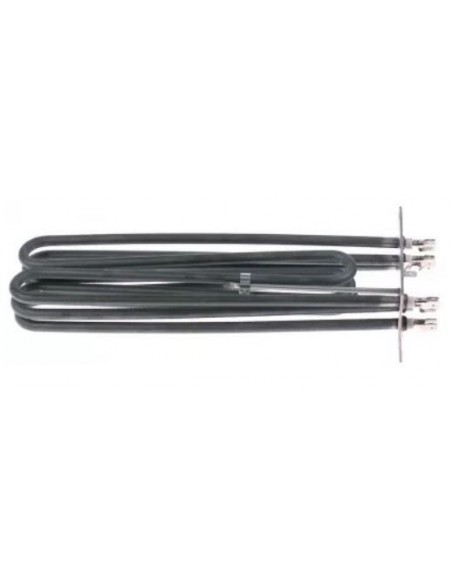

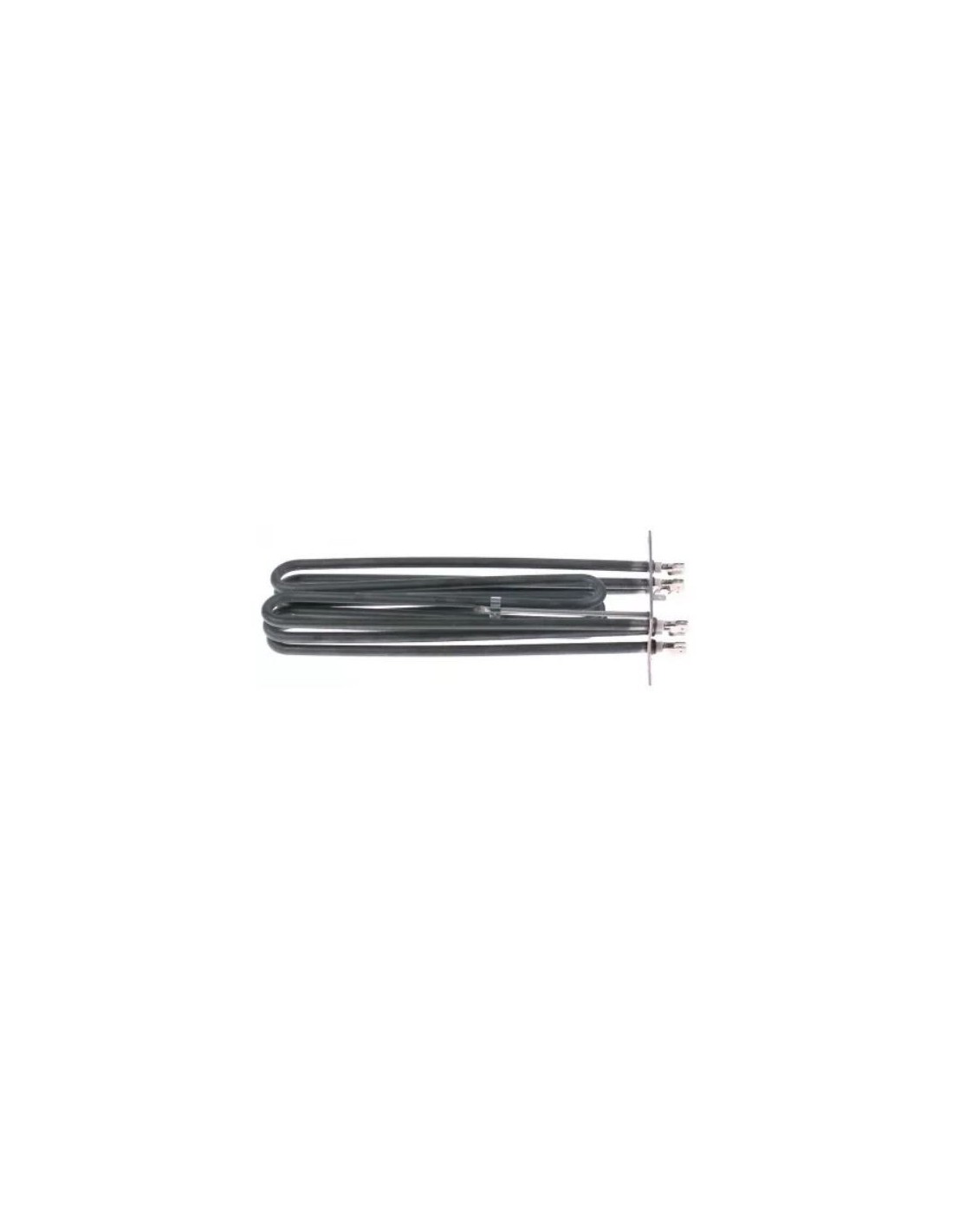

FAGOR oven boiler heating element 9000W, 12024752
Fagorpower | 9000 W |
voltage | 230 V |
heating circuits | 3 |

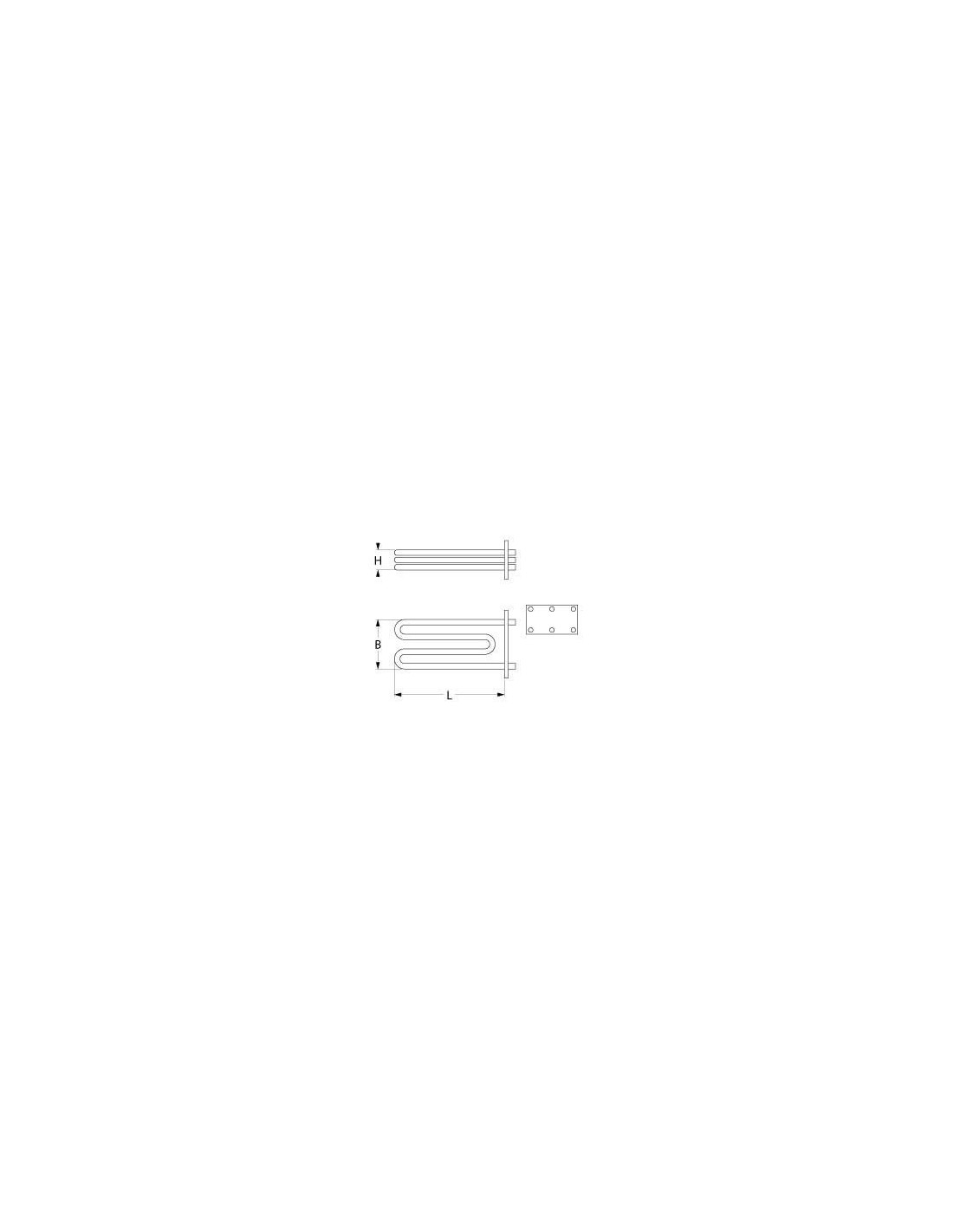

length | 280 mm |
width | 78 mm |
height | 35 mm |
hole distance | 48 mm |
hole diameter | 6 mm |
tube diameter | 8,5 mm |
flange length | 105 mm |
flange width | 60 mm |
application | immersion heater |
diameter thermostat sleeves | 3 mm |
number of thermostat sleeves | 1 |
length thermostat sleeves | 115 mm |
This boiler heating element is mounted on Fagor ovens, the following models: ACE-061, ACE-101, ACE-102, ACE-201, ACE-202, AE-061, AE-061W, AE-101, AE-101W, AE-102, AE-102W, AE-201, AE-202, APE-061, APE-061W, APE-101, APE-101W, APE-102, APE-102W, APE-201, APE-202, COE-102, COE-201, COE-202, HEM-10, HEM-10-21, HEM-20, HEP-10, HEP-20, VE-102, VE-201, VE-202, VPE-102, VPE-201, VPE-202
OEM Fagor code - 12024752
