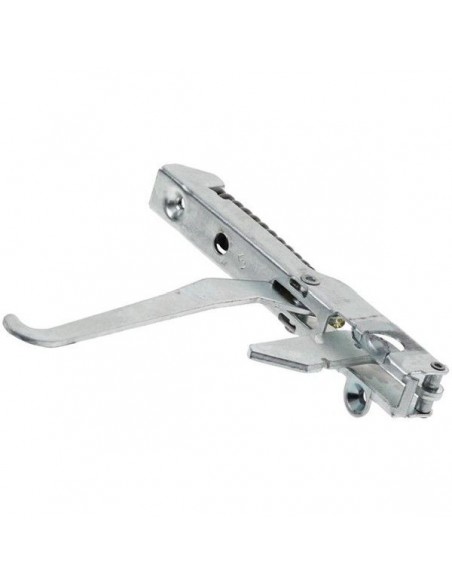

BERTOS oven, fry top, hinge
BertosBERTOS oven, fry top, hinge. The hinge is also used for GIGA and WHIRLPOOL equipments. Also, it might be used for equipment which have doors. GIGA: C4FFLG, C4FFLGP, C6FFLG, C6FFLGP, CC120G, CC80G, CC81G, CCG80E, SKC40G Producers and equipment models: Bertos E6P4-FE1
BERTOS oven, fry top, hinge. The hinge is also used for GIGA and WHIRLPOOL equipments. Also, it might be used for equipment which have doors. GIGA: C4FFLG, C4FFLGP, C6FFLG, C6FFLGP, CC120G, CC80G, CC81G, CCG80E, SKC40G Producers and equipment models: Bertos E6P4-FE1, E6P6-FE1, E6P6-TE, E6PQ2H6-FE1, E6PQ2H6-FE1-T, E6PQ2MH6-FE1, E6PQ2MH6-FE1-T, E6PQ2P9-FE1, E6PQ2P9-TE, E7P4-FE1, E7P6-FE1, E7PQ4-FE1, E7PQ4-FE-T, E7PQ6-FE1, E7PQ6-FE1-T, E9P4-FE1, E9P6-FE1, E9PQ4-FE1, E9PQ4-FE1-T, E9PQ6-FE1, E9PQ6-FE1-T, G6F2H6-FE1, G6F2H9-FE1, G6F2H9-TE, G6F2P6-FE1, G6F2P9-FE1, G6F2P9-TE, G6F3H12-FE1, G6F3H12-TE, G6F3MH12-FE1, G6F4-FE1, G6F4-FE1-A4, G6F4PW-FE1, G6F6-FE1, G6F6-FE1-A6, G6F6PW-FE1, G6F6PW-TE, G6S-FCGN, G7F4E-FE1, G7F4E-FE1-A4, G7F4-FE1, G7F4PW-FE, G7F4PW-FE1, G7F6E-FE1, G7F6E-FE1-A6, G7F6-FE1, G7F6PW-FE, G7F6PW-FE1, G9F4E-FE1, G9F4E-FE1-A4, G9F6E-FE1, G9F6E-FE1-A6, E6P4-VTR-FE1, E7P4-VTR-FE1, E9P4P-VTR-FE1, E9P4-VTR-FE1

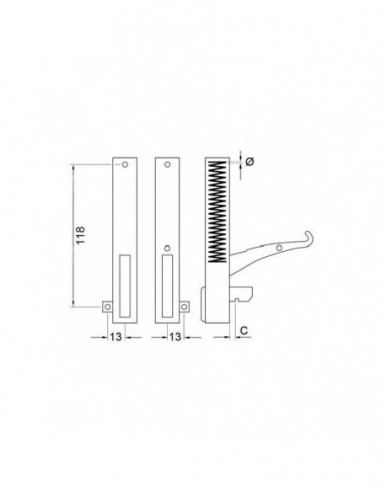

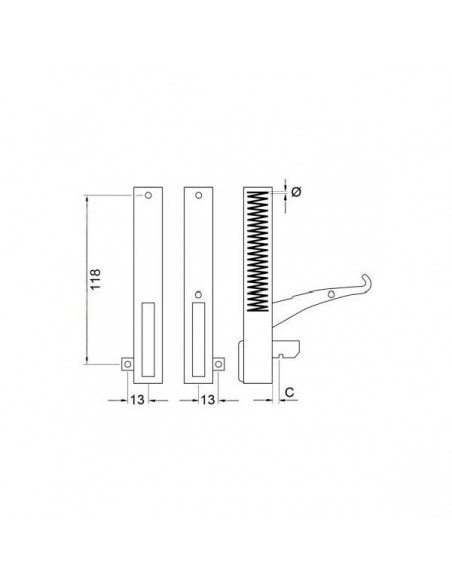

- Length
- 155 mm
- Width
- 21 mm
- Mounting distance
- 118 mm
- Spring length
- 59 mm
- Spring thickness
- 4 mm
- Lug mounting
- 13 mm
- Lever length
- 119 mm
- Groove distance
- 12 mm
- Mounting ear position
- left
