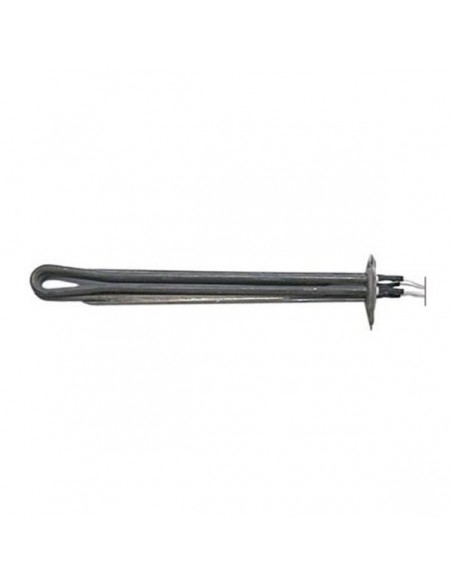

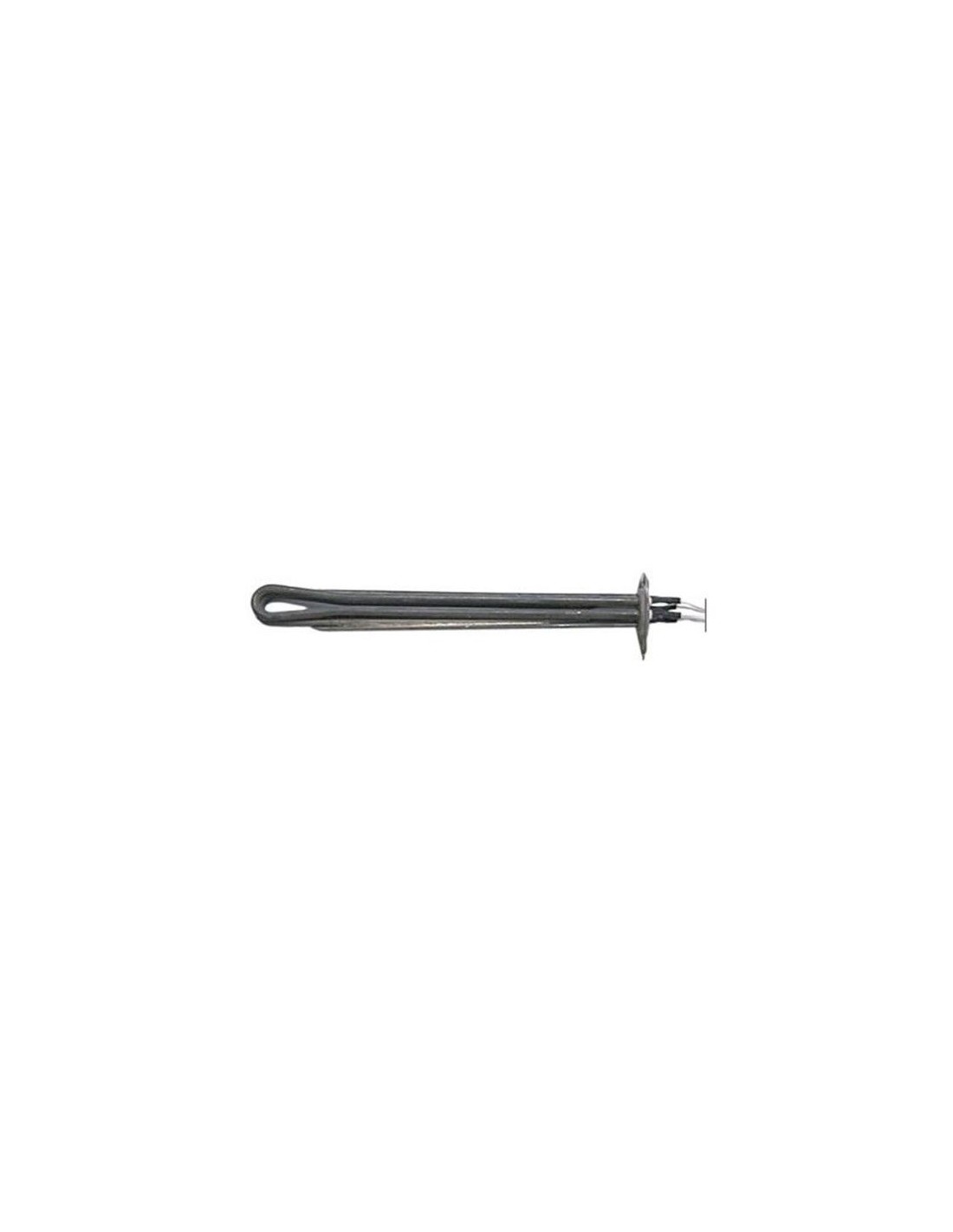

AMBACH heating element 8000W for boiling pan
AMBACH heating element 8000W for boiling pan
AMBACH heating element 8000W for boiling pan
AMBACH heating element 8000W for boiling pan

AMBACH heating element 8000W for boiling pan

AMBACH
415854
€204.93
€204.93 VAT 0% incl.
€204.93 VAT 0% excl.

AMBACH heating element 8000W for boiling pan. The heating element is used for AMBACH electric boiling pans, models: BPE-50, ESK-150, GNKE-100, GNKE-150, GNKE-230. AMBACH catalogue codes: 5060807387, 5060809979.



AMBACH heating element 8000W for boiling pan. The heating element is used for AMBACH electric boiling pans, models: BPE-50, ESK-150, GNKE-100, GNKE-150, GNKE-230. AMBACH catalogue codes: 5060807387, 5060809979.

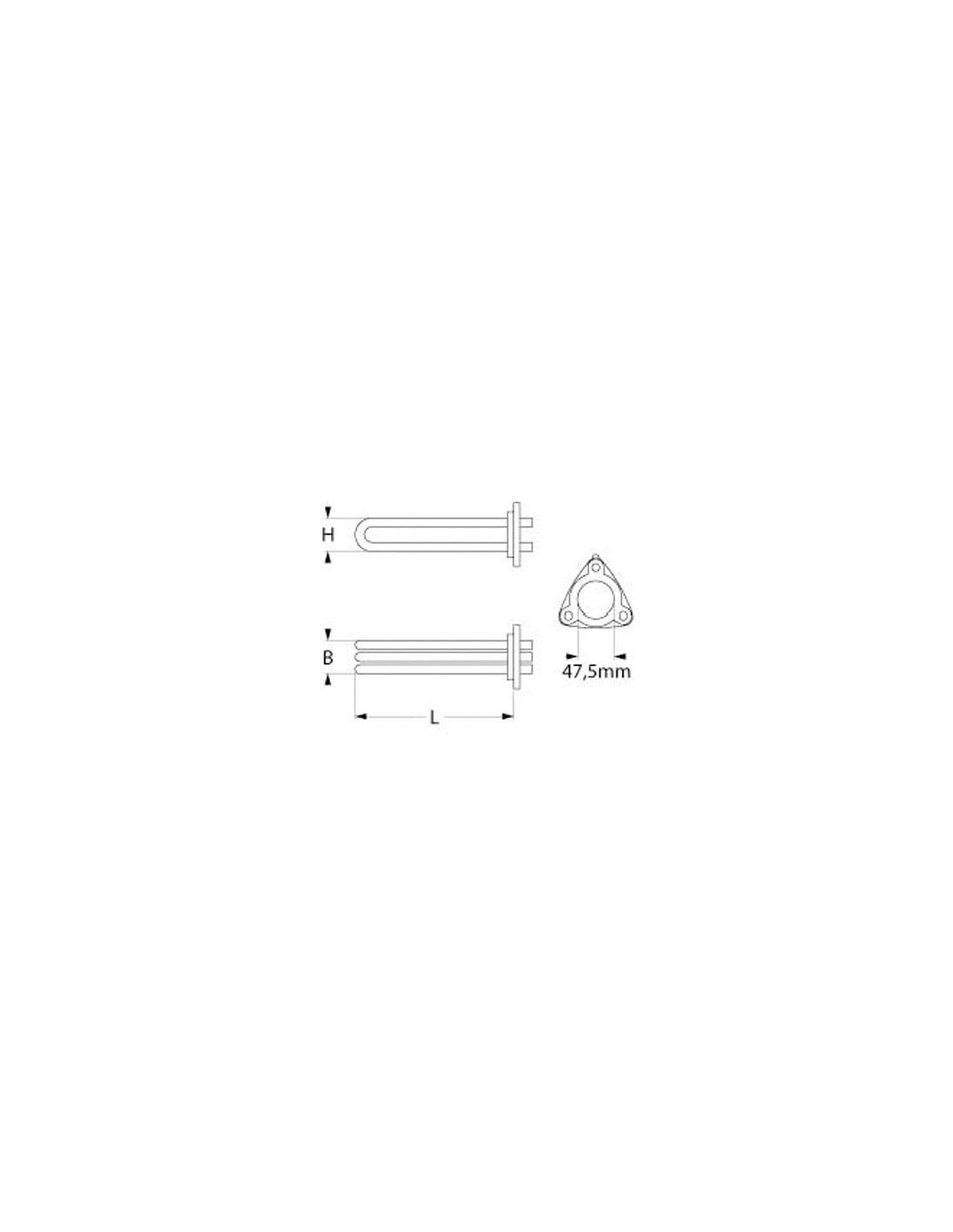

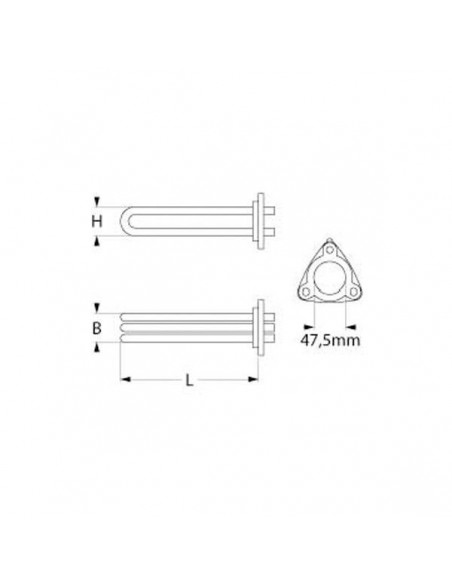

Length
385 mm
Voltage
230 V
Power
8000 W
Connection
cable
Mounting
3 hole flange
Application
immersion heater
Width
32 mm
Height
44 mm
Flange width
20 mm
Hole distance
62 mm
Hole diameter
8x10 mm
Connection length
58 mm
Cable length
800 mm
Mounting diameter
47.5 mm
Heating circuits
3
Tube diameter
8.5 mm
Number of thermostat sleeves
1
Diameter thermostat sleeves
4.5 mm
Length thermostat sleeves
325 mm
Position thermostat sleeve
clinging
Flange length
110 mm
L
290 mm
Tube ø
6.3 mm
W1
97 mm
Hole ø
6.5 mm
L1
45 mm
ID ø
206 mm
ED ø
245 mm
H
42 mm
H1
2 mm
H2
40 mm
