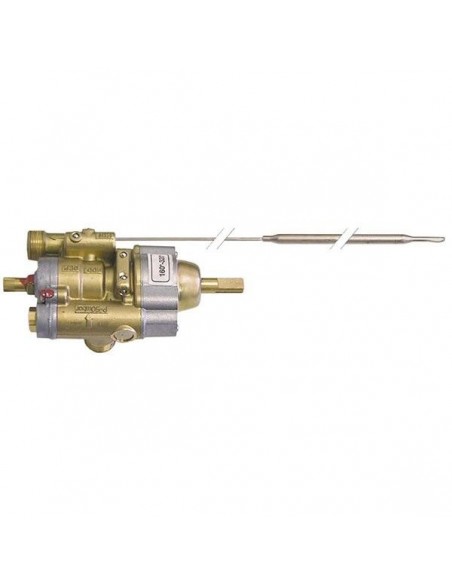

Gas thermostat PEL type 24ST 55-110°CC gas
Gas thermostat PEL type 24ST 55-110°CC gas

Gas thermostat PEL type 24ST 55-110°CC gas

PEL
101078
€161.37
€161.37 VAT 0% incl.
€161.37 VAT 0% excl.
Technical Details gas thermostat: shaft flat upper , shaft length  27/17 mm, shaft diameter 10x8 mm, probe length  160 mm, probe diameter  6 mm, capillary pipe length  1200 mm, pilot burner connection  M10x1, thermocouple connection  M9x1, gas outlet  M20x1,5 (tube ø 12/10mm), bypass nozzle ø     0,35 mm, gas inlet  M20x1,5 (tube ø 12mm), temperature range     55-110 °C, type     24ST, manufacturer     PEL, Suitable for:  Olis,  Emmepi,  MBM-Italia, Gico, Olis, Bain marie gas : 74CB-G-1000150, 74CB-G-1000150R, 74CBG-000150, 74CBG-1000150, 78CB-G-1000160, 78CB-G-1000160R, 78CB-GAC-1000165, 78CBG-000160, 78CBG-1000160, 78CBGAC-1000165, 912PTCBG-1103391, 92CBG-1191301, 92CBG-191301, 92TCBG-1191391, 94CBG-1191302, 94CBG-191302, 94CBGAC-1191362, 94TCBG-1191392


Technical Details gas thermostat: shaft flat upper , shaft length  27/17 mm, shaft diameter 10x8 mm, probe length  160 mm, probe diameter  6 mm, capillary pipe length  1200 mm, pilot burner connection  M10x1, thermocouple connection  M9x1, gas outlet  M20x1,5 (tube ø 12/10mm), bypass nozzle ø     0,35 mm, gas inlet  M20x1,5 (tube ø 12mm), temperature range     55-110 °C, type     24ST, manufacturer     PEL, Suitable for:  Olis,  Emmepi,  MBM-Italia, Gico, Olis, Bain marie gas : 74CB-G-1000150, 74CB-G-1000150R, 74CBG-000150, 74CBG-1000150, 78CB-G-1000160, 78CB-G-1000160R, 78CB-GAC-1000165, 78CBG-000160, 78CBG-1000160, 78CBGAC-1000165, 912PTCBG-1103391, 92CBG-1191301, 92CBG-191301, 92TCBG-1191391, 94CBG-1191302, 94CBG-191302, 94CBGAC-1191362, 94TCBG-1191392
Producer
PEL
Type
24ST
Temperature range
55-110 ℃C
Gas inlet
M20x1.5 (tube ø 12mm)
Gas outlet
M20x1.5 (tube ø 12/10mm)
Thermocouple connection
M9x1
Shaft diameter
10x8 mm
Shaft length
27/17 mm
Shaft flat
upper
Capillary pipe length
1200 mm
Probe diameter
6 mm
Probe length
160 mm
Pilot connection
M10x1
